Standby Generators, GUARDIAN home standby generators automatically supply electricity to pre-selected circuits during a utility power outage. Our pre-packaged, pre-wired systems make installation fast, easy and so affordable, you�ll wonder why you didn�t buy one sooner! And with GUARDIAN, the kilowatt ratings we list� are the kilowatt ratings you get. That�s why GUARDIAN is the #1 selling home standby generator on the market.
| Guardian 16kW Standby Generator |
Specifications |
| Model Number |
5243 |
| Maximum Power |
16,000 Watts with Liquid Propane
|
| Maximum Power |
15,000 Watts with Natural Gas
|
| Voltage |
120/240 |
| Frequency |
60 Hertz |
| Engine Type |
Generac OHV |
| Engine Power |
30 HP V-Twin
|
| Displacement |
992 cc |
| Cooling System |
Air Cooled |
| Fuel Type |
Natural Gas or Liquid Propane
|
Fuel Consuption (cubic feet /hour)
|
NG 245 / LP 92
|
| Oil Capacity |
1.7 Quarts |
| Starter |
Electric Start
|

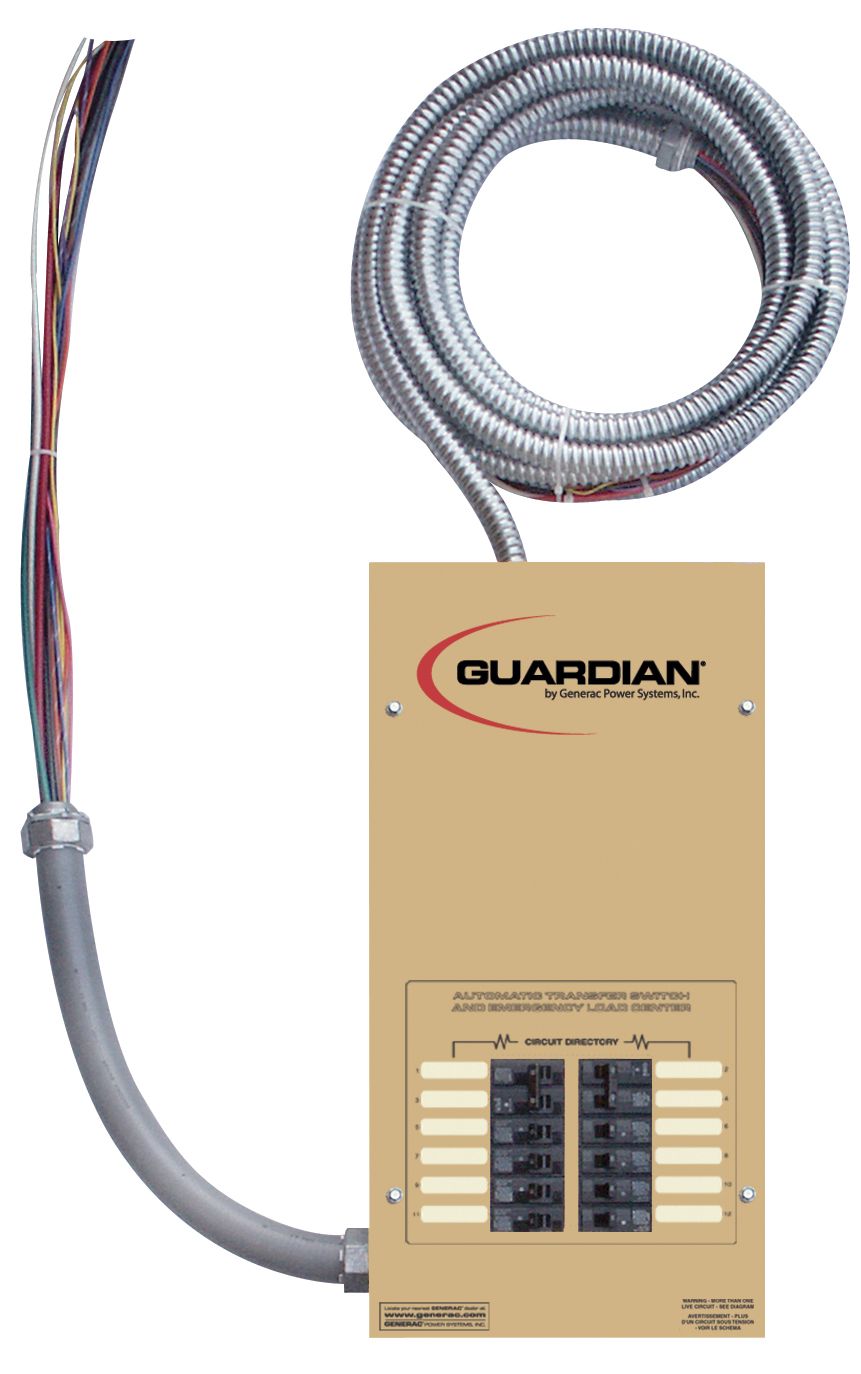

Transfer Switch
|
Guardian Automatic 16 Circuit Transfer Switch
|
Engine Exerciser
|
Automatic Weekly Engine Exerciser
|
| Noise Level at 7 meters |
71 dba |
| Weight |
445 lbs |
| Hour Meter |
Not Included
|
| Dimensions |
48" x 24" x 28" |
|
Engine Start Sequence
|
Cyclic cranking: 7 sec. on, 7 sec. rest. 90 sec. maximum duration
|
|
Automatic Low Oil Shutdown
|
Standard
|
|
Overspeed Shutdown
|
Standard, 72 Hz
|
|
Overcrank Protection
|
Standard
|
|
Automatic Voltage Regulator with Over-Voltage Protection
|
Standard
|
|
Engine Warmup
|
10 seconds
|
|
Engine Cool-Down
|
1 minute
|
|
Safety Fuse
|
Standard
|
|
Starter Lockout
|
Starter cannot re-engage until 5 seconds after the engine has stopped
|
|
2.5 Amp Timed Trickle Battery Charger
|
Standard
|
|
WhisperTest�
|
Sound Output is 61 dB(A) at 23 ft. with generator in WhisperTest� exercise mode
|
|
Auto Switch
|
Automatic start on utility failure/7 day exercise
|
|
Off Switch
|
Stops unit. Power is removed. Control and charger still operate
|
|
Manual / Test (start)
|
Start with starter control, unit stays on. If utility fails, transfer
to load takes place |
|
Full Monitoring System
|
Oil pressure, coolant temperature, engine speed, coolant level,
cranking time, starter lockout, utility sensing |
|
Shutdown and LED Indicators
|
Overspeed and overcrank, low oil pressure, high coolant temperature,
low coolant level, low fuel pressure, low battery voltage |
|
|
|
 |
|
 |
|
