Kubota Diesel Generator 7000 Watt Low Boy

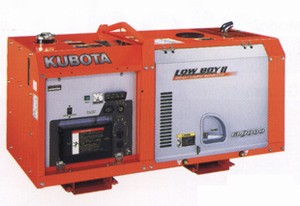

Kubota Heavy Duty Diesel 7000 Watt Generator

Free Shipping
No Sales Tax
1-800-421-3815

List Price: $5,999.99
Our Price: $5,299.99
You save $700.00!

Availability:: Usually Ships in 1 to 2 Days
Product Code: GKB7000

Qty:

Description

Technical Specs

Extended Information

Kubota 7000 Diesel Generator

Direct Coupled
The generator and the engine are direct-coupled to ensure a more reliable power supply with minimum power loss.

A Skewed Rotor & Damper Winding
The waveform distortion is kept to a minimum by the skewed rotor, while the damper winding protects the generator during short circuits, regulates voltage fluctuations during condensive loads, and withstands load fluctuations during condensive and non-linear loads.

EASE OF OPERATION

Compact Design

The design of the LOWBOY II Series is based on the previous compact two-pole horizontal type diesel engine generator. Even though this series is powered by vertical type diesel engines, the height is kept as low as the previous LOWBOY by direct coupling the engine crankshaft with the cooling fan. Kubota also changed the location of the package's air inlet vents to reduce the height of the internal sound absorption duct.

Lower Noise Levels
Four separate improvements help reduce the overall noise levels. First, the large capacity radiator successfully reduces fan related noise by direct coupling its crankshaft with the slower-speed fan. Second, the large capacity, built-in muffler helps reduce exhaust related noise. Third, the longer air cleaner hose reduces air suction related noise. Fourth, the ideally placed inlet vent and its improved design reduce noise coming from the enclosure's opening.

Longer Continuous Operation
The LOWBOY Series' large capacity (28L) fuel tank enables
longer continuous operation on a single tank of fuel.

Outstanding Transportability
The special forklift openings on the base of the machine, and the one-point lifting eye enhanced transportability. A remote control kit is also available as an option.

Access Terminals for ATS make Wiring Easy
Access Terminals for ATS (Automatic Transfer Switches / not supplied by Kubota) are located behind the control panel.

CAREFREE MAINTENANCE

One Side Maintenance
Oil, fuel, battery, and cooling water are all located
on one side for easy maintenance.

Larger-Capacity Oil Pan
This helps stretching the oil change intervals,
thus reducing the overall running cost.

Direct-Coupled
Eliminated the time needed to adjust or replace the cog-belt by direct coupling the generator and the engine.

Double Element Air Cleaners
All LOWBOY generators come with double element air cleaners as standard equipment. Ideal for heavy duty applications in dusty environments.

INCREASED SAFETY

Double Circuit Protectors
In addition to the overall circuit protector, each receptacle also has a circuit protector that will shut the engine down to prevent it from overcurrent damages.

Output Connection Cover
This cover, on all terminal type LOWBOY, stops the engine immediately when it is opened up during operation.

Protective Covers
All moving parts of the engine's cooling fan and the generator are covered.

Automatic Shutdown System
This system automatically shuts the engine down when it senses the engine coolant temperature rising excessively or the oil pressure dropping below a safe level.

Starter Safety Relay
This relay prevents the starter from engaging again once the engine starts up.

MODEL		Unit	GL7000
Type		-	Revolving field, brushless AC Generators
Frequency		Hz	60
Standby Output		kVA (kW)	7.0 (7.0)
Prime Output		kVA (kW)	6.5 (6.5)
Voltage - Single Phase		V	120/240
Armature Connection		-	Series
Phase / Wire		-	1/4
Power Factor		-	1.0
No. of Poles		-	2
Insulation		Class	Rotor coil; class F, Stator coil; class B
Type of Coupling		-	Direct coupled
AMPS
Single Phase 120V		A	54.2
Single Phase 240V		A	27.1
NO. OF RECEPTACLE
5-15R (GFCI)		-	N/A
5-20RA (GFCI)		-	1
6-15R		-	N/A
L5-30R		-	1
L6-30R		-	1
L14-30R		-	1
TERMINAL
Terminal		-	Available
DIESEL ENGINE
Type		-	Vertical, liquid-cooled, 4-cycle diesel engine
Model		-	Z482
No. of Cylinders		-	2
Bore x Stroke		mm (in.)	67.0 x 68.0 (2.6 x 2.7)
Displacement		L (cu. in.)	0.479 (29.2)
Engine Speed		rpm	3600
Continuous Rated Output		kW (HP)	8.1 (10.9)
Lubricant (API classification)		-	above CF grade
Oil Capacity		L (qts.)	2.2 (0.58)
Coolant Capacity		L (qts.)	3.7 (0.98)
Starting System		-	Electric - 12 volt DC
SET
Fuel		-	Diesel fuel No.2 (ASTM D975)
Fuel Consumption	at Full Load	L/h (gal./h)	2.6 (0.69)
	at 3/4 Load	L/h (gal./h)	2.1 (0.55)
	at 1/2 Load	L/h (gal./h)	1.7 (0.45)
	at 1/4 Load	L/h (gal./h)	1.4 (0.38)
Fuel Tank Capacity		L (gal.)	28.0 (7.4)
Continous Operation Hours	at Full Load	h	10.0
	at 3/4 Load	h	13.3
	at 1/2 Load	h	16.5
	at 1/4 Load	h	20.0
Battery (Ah/5h)		-	38B20R (12V x 28Ah)
Dimensions L x W x H		mm (in.)	1066 x 618 x 698 (42.0 x 24.3 x 27.5)
Approx. Net Weight		kg (lbs.)	235 (518)
Sound Level (Full Load at 23 ft. [7m])		dB (A)	66
Emergency Stop System		-	In case of abnormal: Oil pressure, water temperature, or When the access terminal cover is opened (terminal type only)

MODEL		Unit	GL7000
Type		-	Revolving field, brushless AC Generators
Frequency		Hz	60
Standby Output		kVA (kW)	7.0 (7.0)
Prime Output		kVA (kW)	6.5 (6.5)
Voltage - Single Phase		V	120/240
Armature Connection		-	Series
Phase / Wire		-	1/4
Power Factor		-	1.0
No. of Poles		-	2
Insulation		Class	Rotor coil; class F, Stator coil; class B
Type of Coupling		-	Direct coupled
AMPS
Single Phase 120V		A	54.2
Single Phase 240V		A	27.1
NO. OF RECEPTACLE
5-15R (GFCI)		-	N/A
5-20RA (GFCI)		-	1
6-15R		-	N/A
L5-30R		-	1
L6-30R		-	1
L14-30R		-	1
TERMINAL
Terminal		-	Available
DIESEL ENGINE
Type		-	Vertical, liquid-cooled, 4-cycle diesel engine
Model		-	Z482
No. of Cylinders		-	2
Bore x Stroke		mm (in.)	67.0 x 68.0 (2.6 x 2.7)
Displacement		L (cu. in.)	0.479 (29.2)
Engine Speed		rpm	3600
Continuous Rated Output		kW (HP)	8.1 (10.9)
Lubricant (API classification)		-	above CF grade
Oil Capacity		L (qts.)	2.2 (0.58)
Coolant Capacity		L (qts.)	3.7 (0.98)
Starting System		-	Electric - 12 volt DC
SET
Fuel		-	Diesel fuel No.2 (ASTM D975)
Fuel Consumption	at Full Load	L/h (gal./h)	2.6 (0.69)
	at 3/4 Load	L/h (gal./h)	2.1 (0.55)
	at 1/2 Load	L/h (gal./h)	1.7 (0.45)
	at 1/4 Load	L/h (gal./h)	1.4 (0.38)
Fuel Tank Capacity		L (gal.)	28.0 (7.4)
Continous Operation Hours	at Full Load	h	10.0
	at 3/4 Load	h	13.3
	at 1/2 Load	h	16.5
	at 1/4 Load	h	20.0
Battery (Ah/5h)		-	38B20R (12V x 28Ah)
Dimensions L x W x H		mm (in.)	1066 x 618 x 698 (42.0 x 24.3 x 27.5)
Approx. Net Weight		kg (lbs.)	235 (518)
Sound Level (Full Load at 23 ft. [7m])		dB (A)	66
Emergency Stop System		-	In case of abnormal: Oil pressure, water temperature, or When the access terminal cover is opened (terminal type only)
